ESP32-P4 Home Assistant Display

ESP32-P4 Home Assistant Display

The ESP32-P4 Home Assistant Display project provides a sophisticated, tile-based firmware designed to transform ESP32-P4 touch displays into dedicated control panels for smart home environments. By combining a touch-first dashboard UI with a fully configurable web interface, users can manage their Home Assistant entities directly from hardware. The system relies on the power of the ESP32-P4, utilizing FreeRTOS for task management and the LVGL library to render a responsive graphical interface.

Core Requirements and Recent Updates

To function correctly, the firmware requires a specific Home Assistant bridge/integration. This bridge acts as the intermediary, handling MQTT communication between the display and the Home Assistant instance. Recent iterations of the project, such as version 0.1.7, have introduced significant enhancements to the web administration experience. This includes a new microSD file manager that allows for uploading, downloading, and managing files directly through the browser. To ensure system stability, access to the internal LittleFS partition—which stores critical runtime data—is restricted within the file manager to prevent accidental modifications.

Dashboard Overview and UI Capabilities

Everything visible on the dashboard is managed through a built-in web interface. This removes the need for hardcoding layouts, allowing users to add, remove, and resize tiles dynamically. The interface supports drag-and-drop positioning, making it easy to organize navigation structures or create folders for different rooms.

The UI is designed to handle various data types through specialized popups. For instance, light controls offer dedicated views for brightness, color, and temperature, while sensor tiles can expand into detailed history charts showing 24-hour or 7-day trends.

Supported Hardware Platforms

The project currently supports two primary ESP32-P4 development kits:

• Waveshare B4: A 4-inch touch LCD kit.
• M5Stack Tab5: An IoT development kit featuring the ESP32-P4.

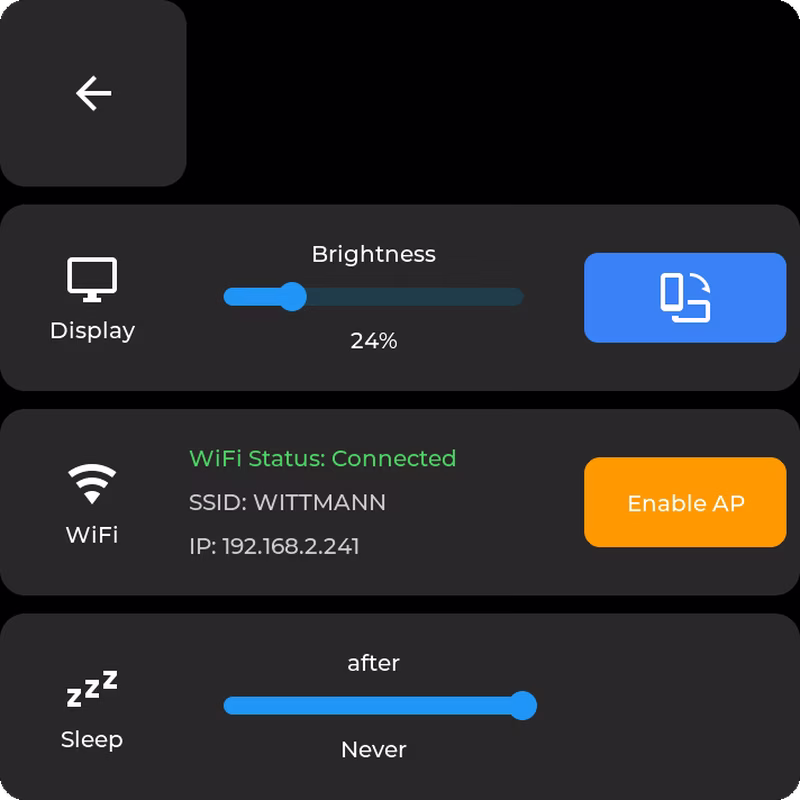

Each device has specific configuration requirements, such as display drivers and power management settings, which are documented to ensure the firmware performs optimally on the target hardware. While the firmware is consistent across devices, performance can vary based on the specific display driver or hardware bottlenecks.

Feature Set and Configuration

The firmware is packed with features designed for ease of use and flexibility:

• OTA Updates: Firmware can be updated directly through the web admin panel.
• Connectivity: Includes an Access Point mode for first-time setup, allowing users to configure WiFi and MQTT settings without a serial connection.
• Localization: Support for English and German languages.
• Storage: Uses LittleFS for internal runtime storage, with optional microSD support for exporting screenshots or migrating data from older setups.
• Tile Variety: Supports various tile types including clocks, energy statistics, weather, scenes, and switches.

Installation and First Setup

Users can choose between using prebuilt binaries or building from source via the Arduino IDE. For a clean installation, a factory.bin is flashed to the device. Once booted, the device enters Access Point mode, creating a temporary WiFi network with a captive portal. Through this portal, users provide their home WiFi credentials. After connecting to the local network, the device’s IP address is used to access the web admin panel, where MQTT settings and Home Assistant entity bridges are configured.

Technical Considerations and Known Issues

Operating the firmware on different hardware comes with specific nuances. For example, the Waveshare B4 currently experiences unreliable software restarts, often requiring a manual hardware reset to wake the display. On the M5Stack Tab5, Access Point mode is most reliable when a battery is installed, or when display brightness is kept low to avoid power-related crashes. Additionally, while a microSD card was previously mandatory, it is now primarily used for screenshot exports and legacy migrations, as the main runtime has moved to internal flash storage for better reliability.
